DR Oxford

Line Oxford

Handle Oxford

Code Colour Length Item Collective packaging
02385 Silver 2700mm 1pcs 20pcs
05816 matt black 2700mm 1pcs 20pcs

Horizontal strip OXFORD Decor

Code Colour Length Item Collective packaging
02391 Silver 1600mm 1pcs 12pcs
05818 matt black 1600mm 1pcs 12pcs

Outer profile OXFORD Decor

Code Colour Length Item Collective packaging
02388 Silver 2700mm 1pcs 20pcs
05817 matt black 2700mm 1pcs 20pcs

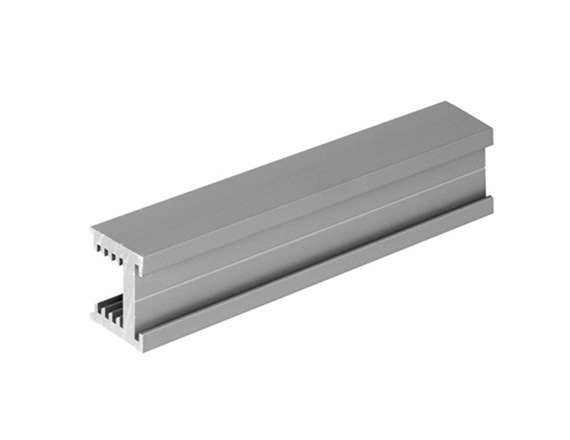

H-Profile H10 Decor

Code Colour Length Item Collective packaging
01617 Silver 3000mm 1pcs 30pcs
01616 Light brown 3000mm 1pcs 30pcs
01616-A Light brown 3000mm 1pcs 30pcs

H-Profile H30 Decor

Code Colour Length Item Collective packaging
00222 Silver 3000mm 1pcs 20pcs
00219-A Light brown 3000mm 1pcs 20pcs
00219 Light brown 3000mm 1pcs 20pcs
03212 White gloss 3000mm 1pcs 20pcs
03606 matt black 3000mm 1pcs 20pcs

Textile seal (doorstop) inserted

Code Dimensions Length Item Collective packaging
20288-SV 14 x 4.0 50 m 1set 0.02set
20224-SV 14.5 x 4.0 50 m 1set 0.02set
20094-SV 14.5 x 4.0 200 m 1 m 200 m

Gasket colourless

Code Dimensions Length Item Collective packaging
20031-SV 4.0 x 10.0 100 m 1 m 100 m
20032-SV 4.5 x 10.0 100 m 1 m 100 m
20033-SV 6.0 x 10.0 100 m 1 m 100 m
20098-SV 6.4 x 10.0 100 m 1 m 100 m
20171 8.0 x 10.1 100 m 1 m 125 m

SET for pull-apart doors ZR OXFORD

Code Number of wings Item Collective packaging
10100-SV 1 1set 24set
Started Compositor 5
Application    Pull-apart doors
Trackn/a
Carriage systemn/a
Top guideVertical hinge
Bottom guideVertical hinge
ConstructionFrame
Filling thickness10 mm
Filling type10 mm MFC or 4.5 mm safety glass or 4 mm mirror
Max. door load22 kg
Max. handle length2700 mm
Textile door stopsYes
Anti-dust brushesn/a
Sales programmeComponents can be purchased separately
Decorative profile programmeDECOR

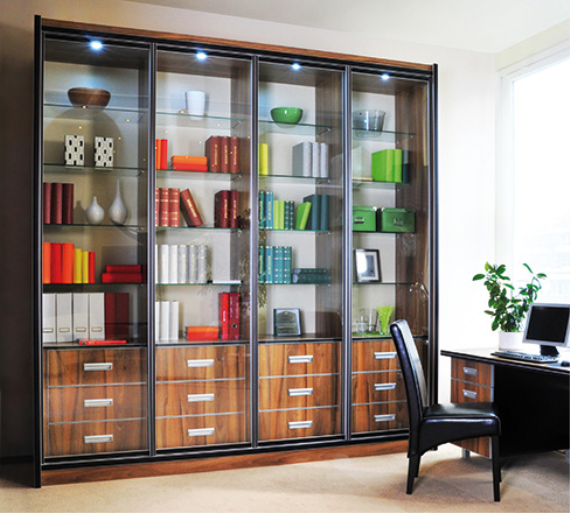

USAGE: pull-apart doors, built-in furniture, bookcases.
