Herkules

Line Herkules 60, 120

Mounting plate for wooden fascia HERKULES

Code Item Collective packaging
219-027 1set 20set

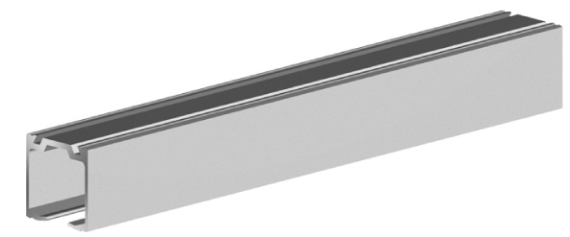

Track HERKULES 2

Code Colour Length Item Collective packaging
214-420 Raw 1200mm 1pcs
214-422 Raw 1500mm 1pcs
214-424 Raw 1800mm 1pcs
214-425 Raw 2000mm 1pcs
214-426 Raw 2400mm 1pcs
214-427 Raw 3000mm 1pcs
214-428 Raw 4000mm 1pcs
214-430 Raw 6000mm 1pcs

Masking fascia end cap HERKULES WOOD

Code Colour Item Collective packaging
219-029 1set 20set

Masking profile HERKULES 2

Code Colour Length Item Collective packaging
214-690 Silver 1200mm 1pcs
214-692 Silver 1500mm 1pcs
214-694 Silver 1800mm 1pcs
214-695 Silver 2000mm 1pcs
214-696 Silver 2400mm 1pcs
214-697 Silver 3000mm 1pcs
214-698 Silver 4000mm 1pcs
214-700 Silver 6000mm 1pcs

Masking profile HERKULES WOOD

Code Colour Length Item Collective packaging
219-036 Silver 23.25mm 1set
214-615 Silver 2010mm 1pcs
214-616 Silver 4020mm 1pcs
214-617 Silver 6050mm 1pcs

Carriage H120 HERKULES

Code Item Collective packaging
215-123 1pcs 100pcs

Carriage H60 HERKULES

Code Item Collective packaging
215-122 1pcs 100pcs

Clipstopper HERKULES

Code Item Collective packaging
321-038 1pcs 200pcs

Soft-Close for sliding doors HERKULES

Code Item Collective packaging
219-032 1set 20set

Stopper II

Code Item Collective packaging
321-039 1pcs 200pcs

C-profile steel

Code Colour Length Item Collective packaging
214-866 Raw 2000mm 1pcs 4pcs
214-867 Raw 3000mm 1pcs 4pcs
214-818 Raw 4000mm 1pcs 4pcs
214-819 Raw 5000mm 1pcs 4pcs
214-820 Raw 6000mm 1pcs 4pcs

Guide with bush 1102 for C- profile 25x17

Code Item Collective packaging
219-489 1pcs 20pcs

Sleeve spacer HERKULES 2

Code Item Collective packaging
219-046 1pcs 200pcs

Wall bracket 25 mm

Code Item Collective packaging
219-047 1pcs 300pcs
219-045 1set 20set

Wall bracket 45 mm

Code Item Collective packaging
219-043 1pcs 200pcs
219-042 1set 20set

Connectors for HERKULES 120kg (1 door)

Code Number of wings Item Collective packaging
219-311 1 1set 20set

Connectors for HERKULES 60kg (1 door)

Code Number of wings Item Collective packaging
219-310 1 1set 20set

Set for sliding doors HERKULES 120kg

Code Number of wings Item Collective packaging
213-360 1 1set 6set
213-361 1 1set 6set
213-362 1 1set 6set
213-363 1 1set 6set
213-364 1 1set 6set
213-365 1 1set 6set

Set for sliding doors HERKULES 60kg

Code Colour Length Item Collective packaging
213-350 1200mm 1set 6set
213-351 1500mm 1set 6set
213-352 1800mm 1set 6set
213-353 2000mm 1set 6set
213-354 2400mm 1set 6set
213-355 3000mm 1set 6set
ApplicationSliding doors
TrackSingle
Carriage systemTop
Top guideNeedle bearing carriage (60 kg) or ball bearing carriage (120 kg)
Bottom guideUniversal guide
ConstructionBoard
Filling thickness16-50 mm
Filling typeBoard
Max. door load60 kg (carriage H60), 120 kg (carriage H120)
Max. handle lengthn/a
Max. track length6000 mm
Textile door stopsn/a
Anti-dust brushesn/a
Sales programmeONE PACK + components can be purchased separately
Decorative profile programmen/a

USAGE: pathway doors, built-in furniture (walk-in wardrobes, wardrobes).
