Ekonomik

Line Ekonomik

Horizontal profile EKONOMIK

Code Colour Length Item Collective packaging
02558 Silver 3000mm 1pcs 24pcs

Guiding carriage Ekonomik

Code Item Collective packaging
10101-SV 1pcs 200pcs

Bottom carriage WD10V Ekonomik

Code Item Collective packaging
10099-SV 1pcs 80pcs

Textile seal (doorstop) inserted

Code Dimensions Length Item Collective packaging
20288-SV 14 x 4.0 50 m 1set 0.02set
20334-SV 14 x 4.0 50 m 1set 0.02set
20429-SV 14 x 4 200 m 200roll 200roll
20428-SV 14 x 4 200mb 200roll 200roll
20224-SV 14.5 x 4.0 50 m 1set 0.02set
20094-SV 14.5 x 4.0 200 m 200roll 200roll

Textile seal (doorstop) inserted

Code Dimensions Length Item Collective packaging
20287-SV 4.8 x 4.0 100 m 1set 0.01set
20225-SV 4.8 x 4.0 100 m 1set 0.01set
20403-SV 4.8 x 4.0 100 m 1set 0.01set
20430-SV 4.8 x 4.0 550 m 550roll 550roll
20020-SV 4.8 x 4.0 550 m 550roll 550roll
20431-SV 4.8 x 4.0 550 m 550roll 550roll

Toothed washer - Ekonomik

Code Item Collective packaging
20166 1set 20set

Bottom track Ekonomik

Handle Ekonomik

Top track Ekonomik

Started Compositor 5

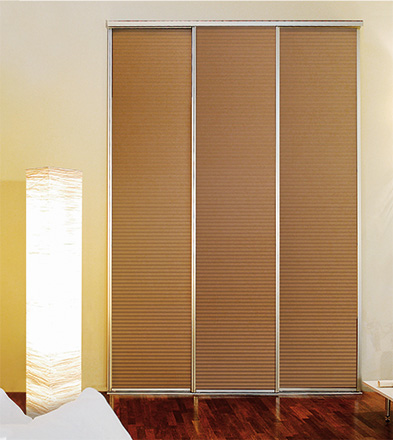

ApplicationSliding doors
TrackTwin
Carriage systemBottom
Top guideBall bearing carriage
Bottom guideBall bearing carriage (load bearing)
ConstructionFrame
Filling thickness10 mm
Filling type10 mm MFC or 4 mm mirror
Max. door load35 kg
Max. handle length2700 mm
Max. track length6000 mm
Textile door stopsYes
Anti-dust brushesn/a
Sales programmeEASY BUY + components can be purchased separately
Decorative profile programmen/a

USAGE: built-in furniture, walk-in wardrobes, wardrobes, attics.
