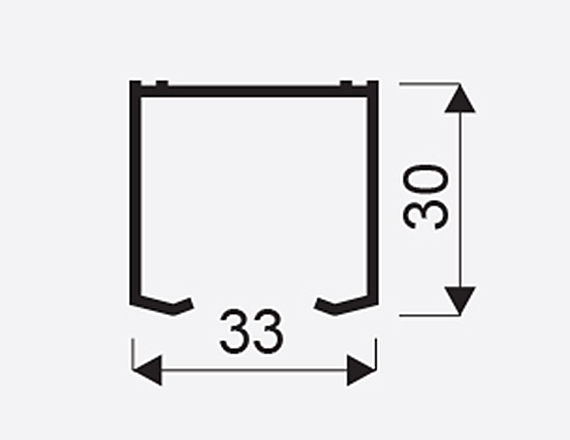

Track HERKULES PLUS

Code Colour Length Item Collective packaging
214-380 Raw 1200mm 1pcs
214-371 Raw 1500mm 1pcs
214-372 Raw 1800mm 1pcs
214-373 Raw 2000mm 1pcs
214-375 Raw 2400mm 1pcs
214-377 Raw 3000mm 1pcs
214-378 Raw 4000mm 1pcs
214-379 Raw 6000mm 1pcs

Carriage HP25 HERKULES PLUS

Code Item Collective packaging
215-092 1pcs 100pcs

Carriage HP40 HERKULES PLUS

Code Item Collective packaging
215-093 1pcs 100pcs

C-profile steel

Code Colour Length Item Collective packaging
214-866 Raw 2000mm 1pcs 4pcs
214-867 Raw 3000mm 1pcs 4pcs
214-818 Raw 4000mm 1pcs 4pcs
214-819 Raw 5000mm 1pcs 4pcs
214-820 Raw 6000mm 1pcs 4pcs

Bottom pivot with seat HERKULES PLUS

Code Item Collective packaging
132-022 1pcs 200pcs

Guide with bush 1102 for C- profile 25x17

Code Item Collective packaging
219-489 1pcs 20pcs

Top pivot with seat HERKULES PLUS

Code Item Collective packaging
132-021 1pcs 200pcs

Clip hinge

Code Colour Item Collective packaging
134-126 Silver 1pcs 200pcs
134-124 Light brown 1set 400set

Hinge 25 kg

Code Item Collective packaging
134-121 1pcs 200pcs

Hinge 40 kg

Code Item Collective packaging
134-102 1pcs 200pcs

Connectors for HERKULES PLUS -25kg (2 doors)

Code Number of wings Item Collective packaging
229-026 2 1set 20set

Connectors for HERKULES PLUS -40kg (2 doors)

Code Number of wings Item Collective packaging
229-028 2 1set 20set

SET HERKULES Plus HP2/25

Code Colour Length Number of wings Item Collective packaging
221-300 Raw 1200mm 2 1set 6set
221-301 Raw 1500mm 2 1set 6set

SET HERKULES Plus HP2/40

Code Colour Length Number of wings Item Collective packaging
221-320 Raw 1200mm 2 1set 6set
221-321 Raw 1500mm 2 1set 6set
Application    Folding doors
TrackSingle
Carriage systemTop
Top guideRoller bearing carriage + vertical hinge
Bottom guideVertical hinge
ConstructionBoard
Filling thickness16-40 mm
Filling typeBoard
Max. door load50 kg (2 x 25), 80 kg (2 x 40)
Max. handle lengthn/a
Max. track length6000 mm
Textile door stopsn/a
Anti-dust brushesn/a
Sales programmeONE PACK + components can be purchased separately
Decorative profile programmen/a

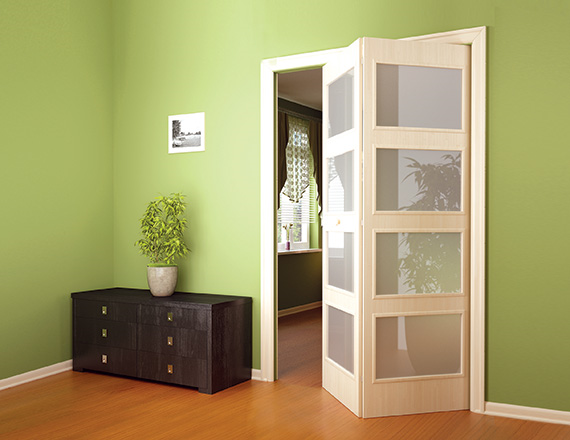

USAGEfolding doors, built-in furniture, walk-in wardrobes, wardrobes.
